The 12m CS Stage has been designed by OTP to provide the ultimate stage solution in the mid-size staging market. Utilising Milos truss components based around MT2 towers and a 520mm truss grid, the stage is constructed with an integrated Layher base.
The 12m CS stage is provided as standard with stage left and right covered off stage sheds and has the option for a full width rear shed too. Cantilevers on the front towers provide locations for PA hangs using either single or two-point rigging.
A site visit must be facilitated before a firm quotation can be provided, but an initial estimate can be provided based on a site location and build and break dates.
Typically, this structure takes two days to construct in fair conditions, and slightly less to remove.
Schematic drawings are available on request, and full health and safety documentation and structural calculations are provided upon receipt of the booking deposit payment.
LED screen support wings and out fill PA hangs are also available as structure extensions and is complimented well by OTP's stock of accessible viewing platforms, FOH structures and front of stage barrier.
The 12m CS stage is provided as standard with stage left and right covered off stage sheds and has the option for a full width rear shed too. Cantilevers on the front towers provide locations for PA hangs using either single or two-point rigging.
A site visit must be facilitated before a firm quotation can be provided, but an initial estimate can be provided based on a site location and build and break dates.
Typically, this structure takes two days to construct in fair conditions, and slightly less to remove.
Schematic drawings are available on request, and full health and safety documentation and structural calculations are provided upon receipt of the booking deposit payment.
LED screen support wings and out fill PA hangs are also available as structure extensions and is complimented well by OTP's stock of accessible viewing platforms, FOH structures and front of stage barrier.
Headline specifications:
- Performance area: 12.2m (w) x 11.m (d) – 136.6sqm
- Trim height: 6.8m
- Nominal stage height: 2.0m
- Access: Two sets of stairs & rear loading dock for vans and/or trucks.
- SL & SR offstage sheds: 9.3m x 4.8m - 44.6sqm each
- Rear offstage sheds: 4.1m x 11.8m - 48.4sqm
- Maximum wind speed: 20.8 m/s
- Kentledge requirements: 200kN – 260kN based on configuration.
- Kentledge options: Concrete only
- Site requirements: Suitable access and unloading space for three articulated trucks.
- Plant requirements: 1x 9m or larger telehandler. 1x 16m articulated boom access platform.
Other covered stages available from OTP:
12m CS roof stage:

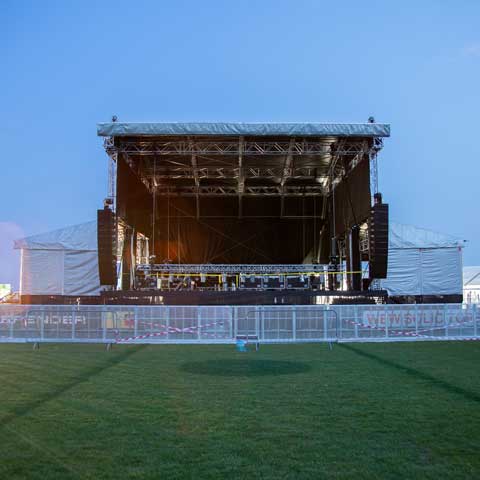

1/1: Party on the Pitch, Exeter Rugby Club.
