The OTP 10m arc roof stage is a self-climbing Milos truss component roof on a Layher sub-structure.
Designed in house, we've optimized the design to suit our customers' requirements, with increased loading options and functionality.
Constructed using an integrated Layher base, this stage offers a covered performance area of just over 80 square meters.
Additionally, stage left, right and rear cattle sheds can be added to provide up to 75 square meters of covered working area, in addition to a loading dock and ramp.
A site visit must be facilitated before a firm quotation can be provided, but an initial estimate can be provided based on a site location and build and break dates.
Typically, this structure takes two days to construct in fair conditions, and one day to remove. Schematic drawings are available on request, and full health and safety documentation and structural calculations are provided upon receipt of the booking deposit payment.
Designed in house, we've optimized the design to suit our customers' requirements, with increased loading options and functionality.
Constructed using an integrated Layher base, this stage offers a covered performance area of just over 80 square meters.
Additionally, stage left, right and rear cattle sheds can be added to provide up to 75 square meters of covered working area, in addition to a loading dock and ramp.
A site visit must be facilitated before a firm quotation can be provided, but an initial estimate can be provided based on a site location and build and break dates.
Typically, this structure takes two days to construct in fair conditions, and one day to remove. Schematic drawings are available on request, and full health and safety documentation and structural calculations are provided upon receipt of the booking deposit payment.
Headline specifications:
- Performance area: 9.7m (w) x 8.2m (d) – 79.5sqm
- Trim height: 5.7m
- Nominal stage height: 1.5m
- Access: Two sets of stairs & rear loading dock for vans and/or trucks
- SL & SR offstage sheds: 6.2m x 2.3m - 44.6sqm each
- Rear offstage sheds: 4.1m x 8.2m – 33.6sqm
- Maximum wind speed: 20.8 m/s
- Kentledge requirements: 78kN – 148kN based on configuration
- Kentledge options: Ground anchors, or concrete
- Site requirements: Suitable access and unloading space for 1-2 articulated trucks
- Plant requirements: 1x 6m or larger telehandler
Other covered stages available from OTP:
10m self-climbing arc roof stage:

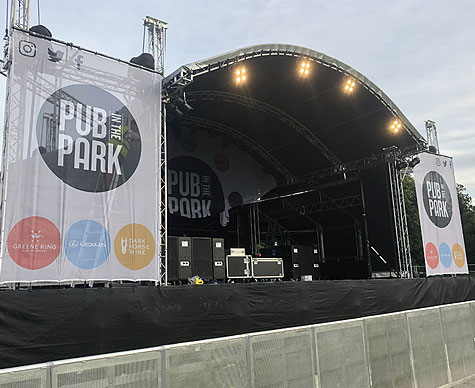

1/7: With cattlesheds and PA wings for Pub In The Park.
1/7: With cattlesheds and PA wings for Pub In The Park.
10m self-climbing arc roof stage:

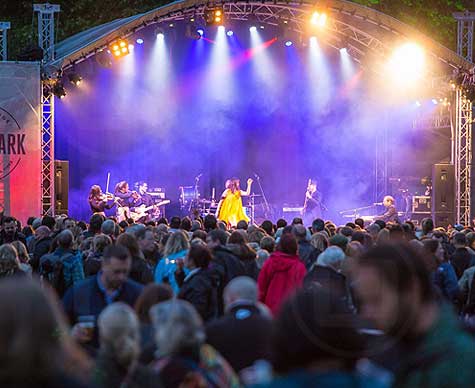

2/7: Sophie Ellis-Bextor on stage; Pub In The Park, Marlow.
2/7: Sophie Ellis-Bextor on stage; Pub In The Park, Marlow.
10m self-climbing arc roof stage:

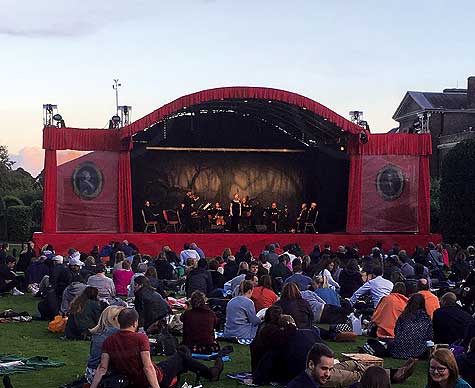

3/7: With custom red velvet trim; Kensington Palace.
3/7: With custom red velvet trim; Kensington Palace.
10m self-climbing arc roof stage:

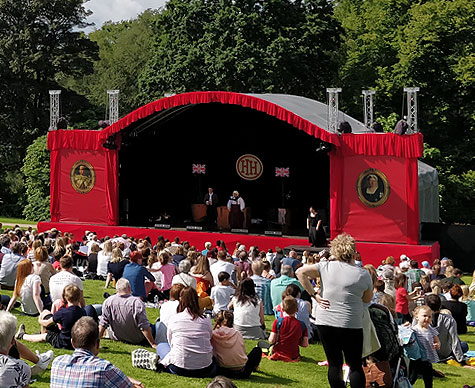

4/7: With custom red velvet trim; Hillsborough Castle, Northern Ireland.
4/7: With custom red velvet trim; Hillsborough Castle, Northern Ireland.
10m self-climbing arc roof stage:

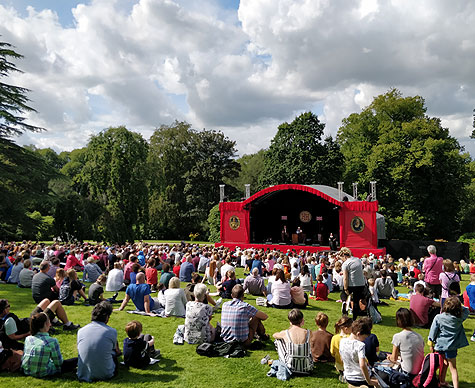

5/7: With custom red velvet trim; Hillsborough Castle, Northern Ireland.
5/7: With custom red velvet trim; Hillsborough Castle, Northern Ireland.
10m self-climbing arc roof stage:

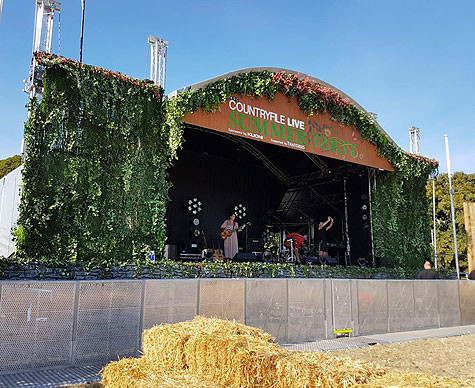

6/7: At Countryfile Live 2018.
6/7: At Countryfile Live 2018.
10m self-climbing arc roof stage:

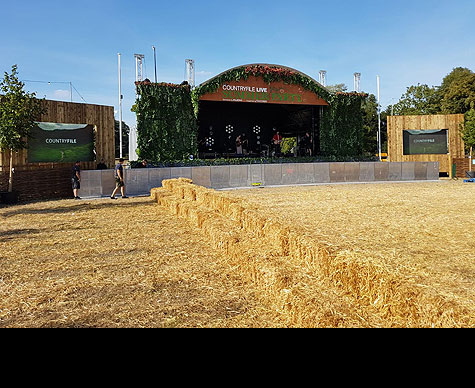

7/7: At Countryfile Live 2018.
