OTP's 8m Arc stage roof system covers a stage area 8m wide x 7.5m deep and is ideal for creating a small, covered festival stage, concert stage or temporary outdoor event area. Supplied with a Layher stage structure, this structure lends allows for easy integration into a larger stage structure.
Sides and back are normally clad with semi-permeable mesh and can be internally lined with black wool serge drapes; or the stage can be left fully open. Alternatively, a custom printed mesh walls or banner can be used.
This stage roof requires either a water ballast system or ground anchors to 1.1m. The necessary ballast tanks are provided with the stage, but it is the customer's responsibility to provide a suitable water supply. Ground anchors can only be used where ground conditions, underground services or other circumstances permit.
Typically, this structure takes a day to construct in fair conditions, and slightly less to remove. Unfortunately, in order to supply this structure at a competitive price point between May and September, OTP is only able to supply this as part of a larger contract alongside other stages, structures or services.
Schematic drawings are available on request, and full health and safety documentation and structural calculations are provided upon receipt of the booking deposit payment.
For clients that require structural additions including side sheds and PA towers, OTPs alternative 8m XL Arc may be the ideal upgrade to offer off stage band change over space as well as loading ramps and PA rigging options.
Sides and back are normally clad with semi-permeable mesh and can be internally lined with black wool serge drapes; or the stage can be left fully open. Alternatively, a custom printed mesh walls or banner can be used.
This stage roof requires either a water ballast system or ground anchors to 1.1m. The necessary ballast tanks are provided with the stage, but it is the customer's responsibility to provide a suitable water supply. Ground anchors can only be used where ground conditions, underground services or other circumstances permit.
Typically, this structure takes a day to construct in fair conditions, and slightly less to remove. Unfortunately, in order to supply this structure at a competitive price point between May and September, OTP is only able to supply this as part of a larger contract alongside other stages, structures or services.
Schematic drawings are available on request, and full health and safety documentation and structural calculations are provided upon receipt of the booking deposit payment.
For clients that require structural additions including side sheds and PA towers, OTPs alternative 8m XL Arc may be the ideal upgrade to offer off stage band change over space as well as loading ramps and PA rigging options.
Headline specifications:
- Performance area: 8.3m (w) x 7.7m (d) – 67.8sqm
- Trim height: 4.7m
- Nominal stage height: 1.0m
- Access: One set of stairs
- SL & SR offstage sheds: Not available
- Rear offstage sheds: Not available
- Maximum wind speed: 20.8 m/s
- Kentledge requirements: 40kN
- Kentledge options: Ground anchors, water ballast or concrete.
- Site requirements: Suitable access and unloading space for 3.T vans with trailers.
- Plant requirements: None
Other covered stages available from OTP:
8m arc roof stage:

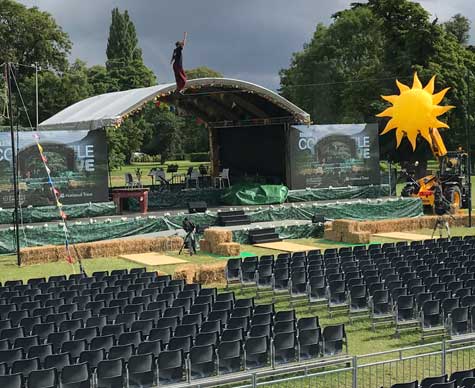

1/5: The Countryfile Live Theatre; Blenheim Palace.
1/5: The Countryfile Live Theatre; Blenheim Palace.
8m arc roof stage:

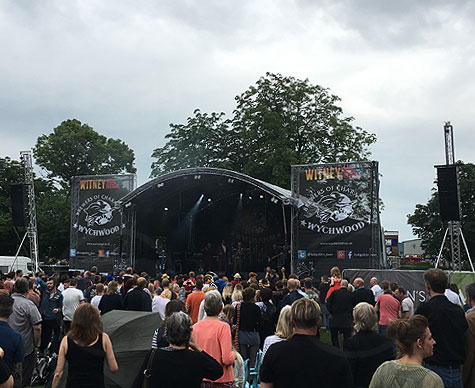

2/5: Witney Music Festival 2016.
2/5: Witney Music Festival 2016.
8m arc roof stage:

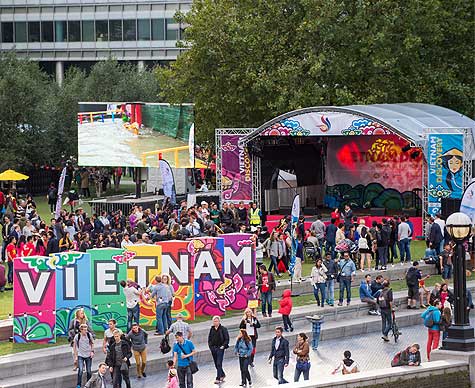

3/5: Vietnam Discovery Day, Potter's Fields, London.
3/5: Vietnam Discovery Day, Potter's Fields, London.
8m arc roof stage:

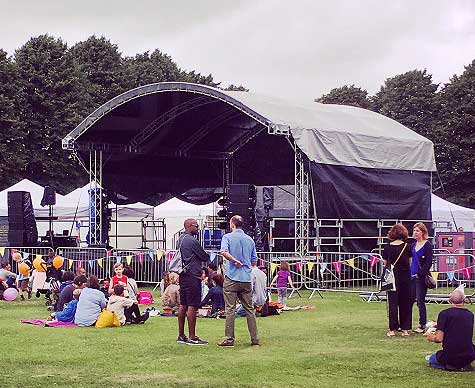

4/5: As 'Second Stage', Walthamstowe Garden Party.
4/5: As 'Second Stage', Walthamstowe Garden Party.
8m arc roof stage:

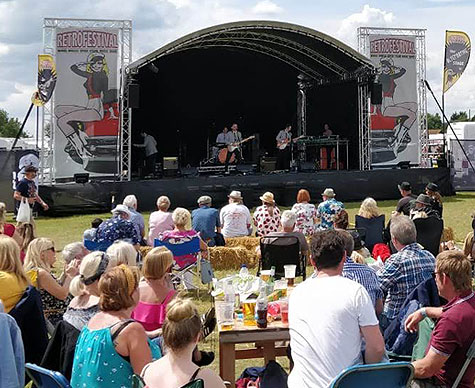

5/5: Main Stage at Retro Festival.
5/5: Main Stage at Retro Festival.
