Staging Outdoor covered stages
8m XL arc roof stage
Please contact us for alternative PA wing options
The OTP XL 8m temporary stage arc roof system has been designed in house to satisfy the requirement of customers that need the typical functionality of a larger stage whilst retaining a structure that is in scale with their event space.
Constructed using an integrated Layher base, this stage offers a covered performance area of just under 70 square meters. Combined with fully integrated stage left, right and rear cattle sheds an additional 31.5 square meters of covered working area can be added, in addition to a loading dock or ramp.
A site visit must be facilitated before a firm quotation can be provided, but an initial estimate can be provided based on a site location and build and break dates.
Typically, this structure takes just under two days to construct in fair conditions, and one day to remove. Schematic drawings are available on request, and full health and safety documentation and structural calculations are provided upon receipt of the booking deposit payment.
Constructed using an integrated Layher base, this stage offers a covered performance area of just under 70 square meters. Combined with fully integrated stage left, right and rear cattle sheds an additional 31.5 square meters of covered working area can be added, in addition to a loading dock or ramp.
A site visit must be facilitated before a firm quotation can be provided, but an initial estimate can be provided based on a site location and build and break dates.
Typically, this structure takes just under two days to construct in fair conditions, and one day to remove. Schematic drawings are available on request, and full health and safety documentation and structural calculations are provided upon receipt of the booking deposit payment.
Headline specifications:
- Performance area: 8.3m (w) x 7.8m (d) – 67.8sqm
- Trim height: 4.9m
- Nominal stage height: 1.0m
- Access: Two sets of stairs &/or rear loading ramp to ground.
- SL & SR offstage sheds: 5.0m x 2.1m – 10.5sqm each
- Rear offstage sheds: 5.0m x 2.1m – 10.5sqm
- Maximum wind speed: 20.8 m/s
- Kentledge requirements: 106kN – 185kN based on configuration.
- Kentledge options: Ground anchors, or concrete. (Water ballast subject to increased stage height)
- Site requirements: Suitable access and unloading space for 1 articulated truck
- Plant requirements: 1x 6m or larger telehandler
Other covered stages available from OTP:
8m XL arc roof stage:

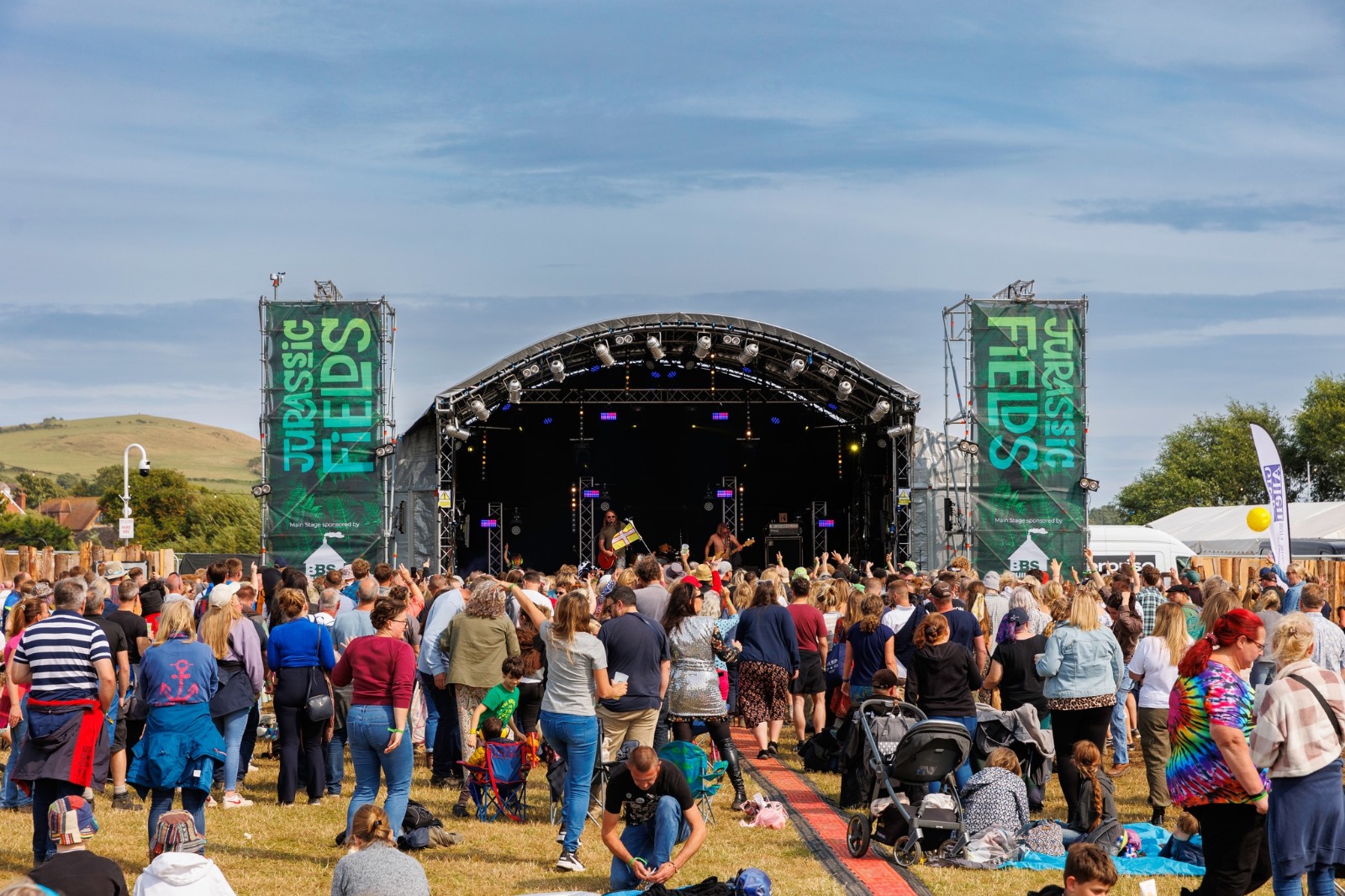

1/3: Jurassic Fields Festival.
1/3: Jurassic Fields Festival.
8m XL arc roof stage:

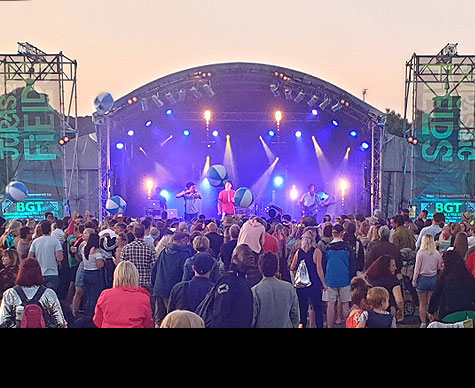

2/3: Jurassic Fields Festival.
2/3: Jurassic Fields Festival.
8m XL arc roof stage:

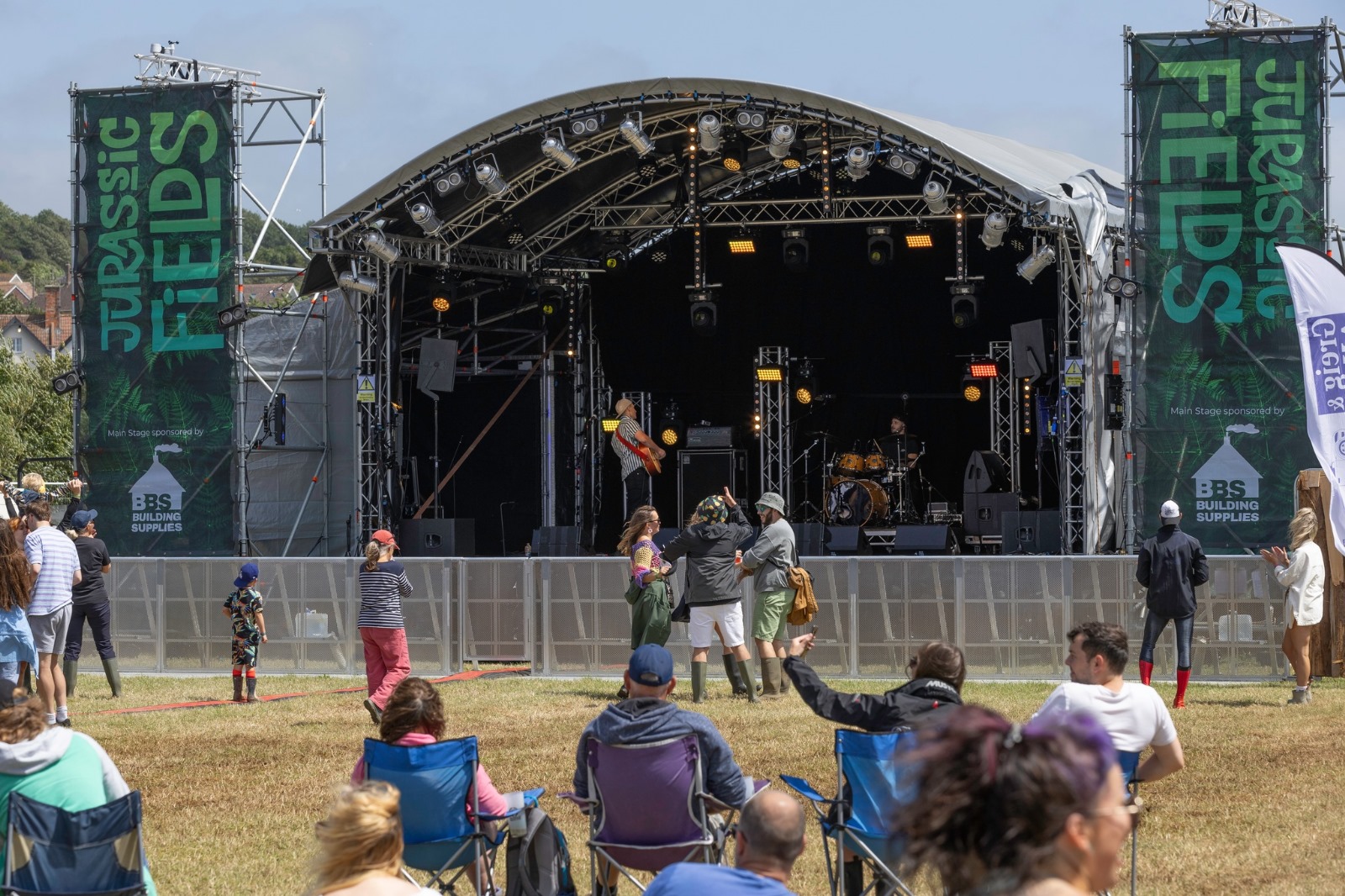

3/3: Jurassic Fields Festival.
